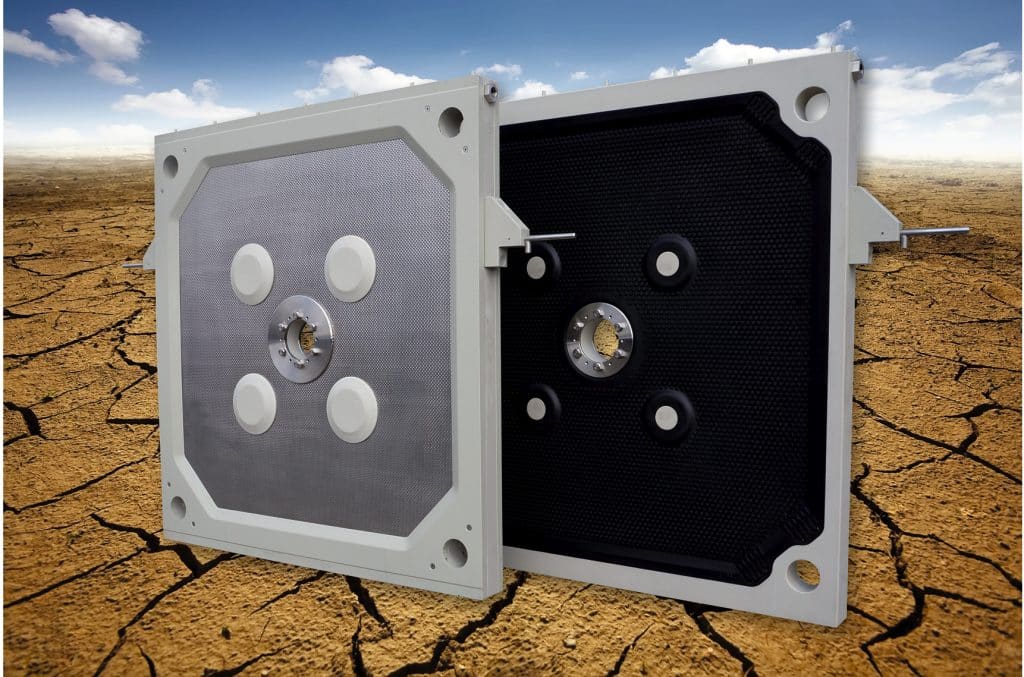

JVK® TCC/TCM sheets
Tempering. Accelerate. Ensure quality.
JVK® TCC/TCM provides you with temperature-controlled filter press plates for reliable dehumidification and short cycle times. Integrated heating/cooling channels allow filter cakes to be preheated, reheated or cooled in a targeted manner in order to optimize dewatering, drying and product quality.
What does TCC/TCM mean?

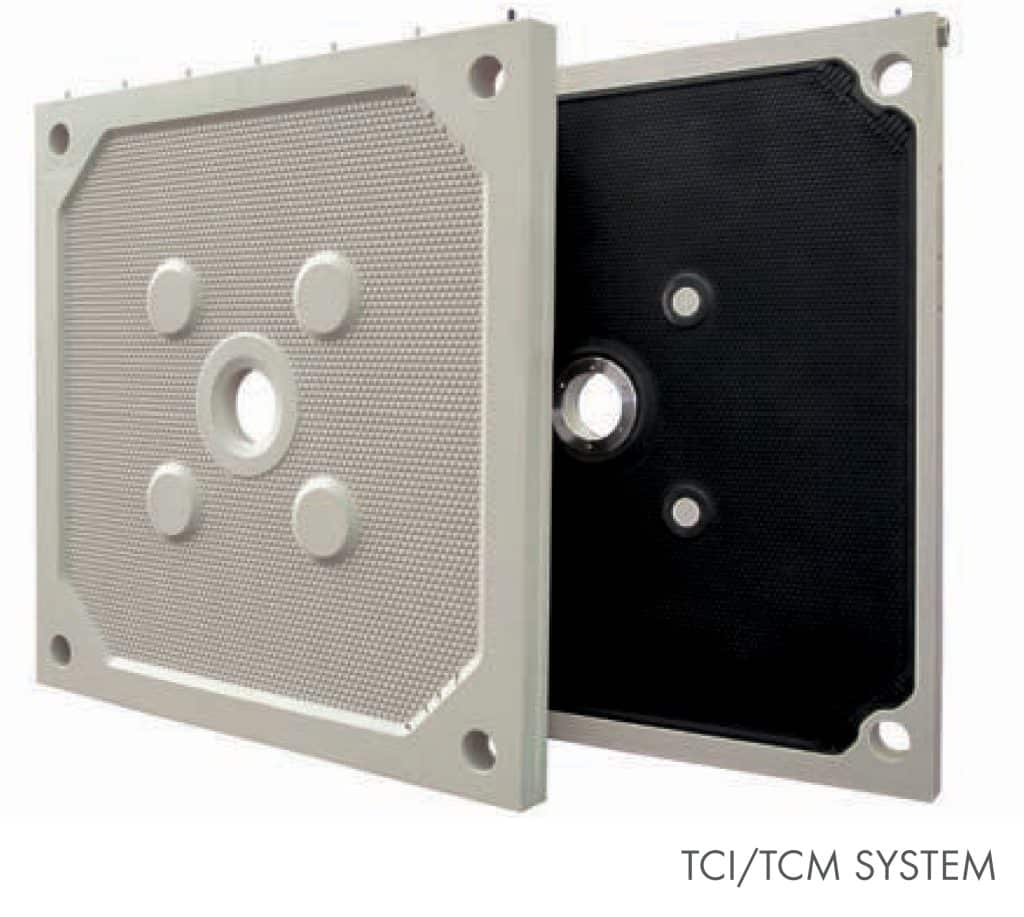

- TCC – Temperature-controlled chamber plate: classic chamber geometry with temperature control channels.

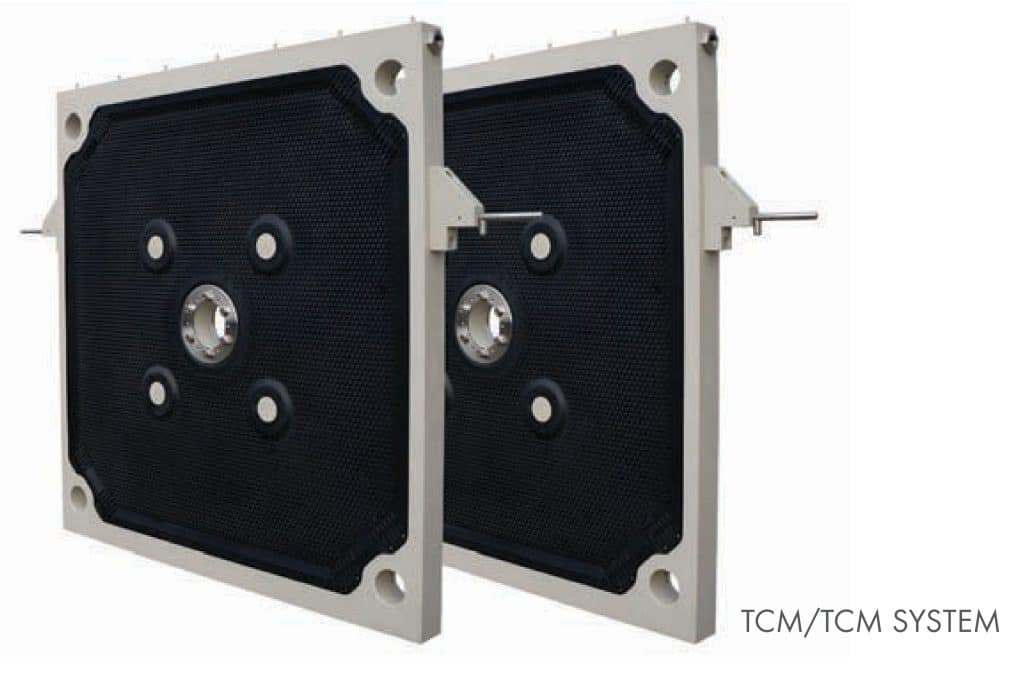

- TCM – Temperature-controlled membrane plate: Membrane plate with temperature control – combines pressing/pressing with thermal support.
Benefits at a Glance
- Shorter cycles thanks to thermally assisted dewatering/drying.
- Lower residual moisture and reproducible cake quality.
- Process stability: defined temperature control, fewer fluctuations.
- Flexible: Heating (steam/hot water/oil) or cooling (water/brine).
- Compatible & retrofit-capable: Design for existing presses possible.
Technical design
- Plate body: PP or PVDF, flow-optimized channels.
- Diaphragm (TCM): TPE/EPDM/NBR – matched to medium, temperature, pH.
- Temperature control media: steam, thermal oil, hot/cold water; suitable connections.
- Inlet variants: Center or corner inlet, wash channels on request.
- Options: Cake washing, thermal drying, squeeze-out indicator, SnapFit® cloth system.
Applications
Mining (concentrates, tailings), chemicals/fine chemicals, ceramics, pigments/paints, environmental technology – wherever residual moisture and cycle time are crucial.
Design & Service
We dimension the cake thickness, membrane material, channel guidance and temperature control capacity according to the medium, temperature window and target values. Retrofit of your existing system incl. sample plate on request.
Suitable filter cloths: Optimum results with correctly laid out cloths.
→ JVK® filter cloths
Quick cloth change:
→ JVK® SnapFit®
FAQs
When do I choose TCC instead of TCM?
TCC for robust processes with a focus on temperature control; TCM if additional compression/compression molding is required.
Which temperature control media are possible?
Depending on the process: steam, thermal oil, hot/cold water – connections and sealing concept are designed accordingly.
Can TCC/TCM plates be retrofitted?
Yes, can often be realized as a retrofit in existing presses. We check geometry, loads and media resistance.
